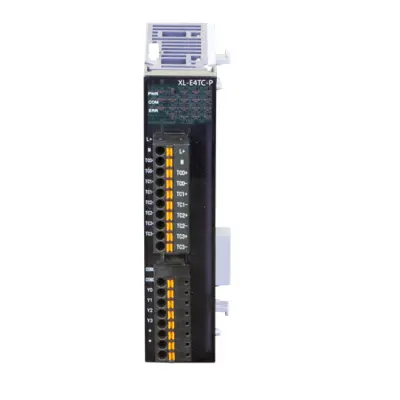

XL series temperature expansion Module
- Mã sản phẩm:
- XL-E4TC-P, XL-E4PT3-P
- Thương hiệu:
- XINJE
- XL series PLC adapts to the right expansion module of temperature input, including 4-point input specifications. XL series PLC can generally expand 10 ~ 16 modules.
Giá: Liên hệ
Thông tin sản phẩm
Product features (Tính năng sản phẩm)
- XL series PLC adapts to the right expansion module of temperature input, including 4-point input specifications.
- XL series PLC can generally expand 10 ~ 16 modules.

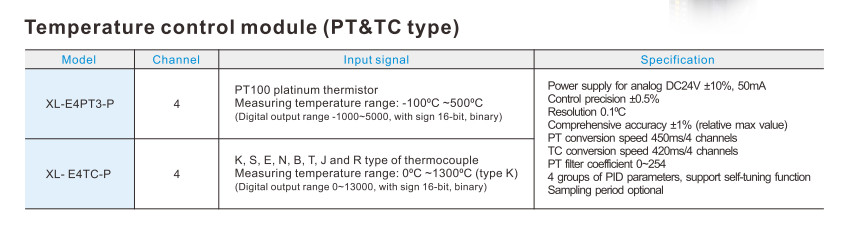

- Power specification: DC24V
- PT100 platinum thermistor and various thermocouple types are supported.
- The accuracy is 0.1 ℃.
- Built in cold end compensation circuit.
- Set the PID parameter value of each temperature channel independently and have a separate register address space.
- Support PID real-time self-tuning function. Allow the equipment to carry out PID self-tuning under various states (cold state, heating state, transition state, etc.) to obtain appropriate PID setting value.
- Support the exchange of data between module and PLC CPU through FROM and TO instruction, increase the flexibility of product application, save the amount of interactive data and expand the data storage space.
Tài liệu kỹ thuật:
- Catalogue (PDF)
