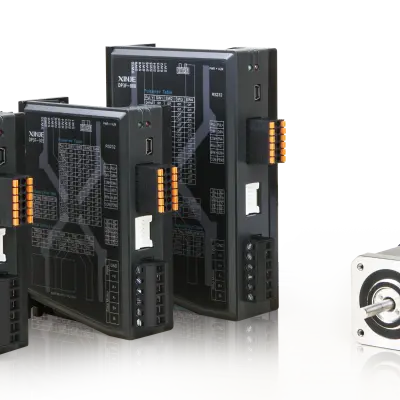

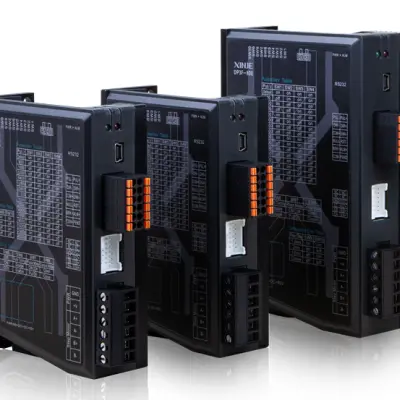

DP3F closed-loop Stepping Driver
- Mã sản phẩm:
- DP3F-
- Thương hiệu:
- XINJE
- Closed loop control technology, using encoder as position feedback, can compensate the position deviation in real time, and fundamentally solve the problem of step loss of traditional stepping motor.
Giá: Liên hệ
Thông tin sản phẩm
Product features (Đặc tính sản phẩm)
- Using encoder as position feedback, the position deviation can be compensated in real time, which fundamentally solves the problem of step loss of traditional stepping motor.
- The current can be adjusted in real time according to the load and speed, which makes the operation more stable and the motor heating lower.
- Compared with the open-loop stepping, the high-speed performance of the motor is obviously improved.
- Pulse and direction input levels support 5V and 24V, sliding switch selection.
- 4-digit dialing switch, 16 levels of segmentation can be set to meet the needs of most customers.
- Dial the switch to change the rotation direction of the motor.
- It has power on self-tuning function, and dialing switch is optional.
- Support single and double pulse mode, with optional dialing switch.
- Command smoothing time dialing is optional, which is convenient for debugging and improves the stability of motor operation.
- Two digital input signals: enable signal input and alarm clear signal input.
- Three digital output signals: alarm signal output, in place / Z signal output, holding brake signal output.
- It has the protection functions of overcurrent, overvoltage, locked rotor detection, out of step compensation and so on.
Tài liệu kỹ thuật:
- Catalogue (PDF)
