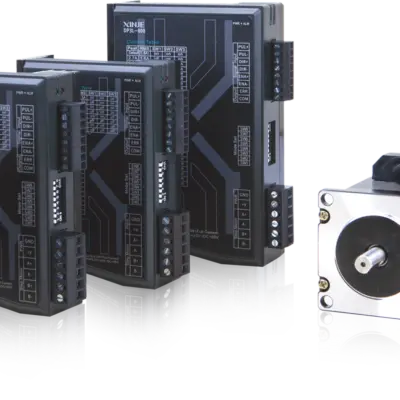

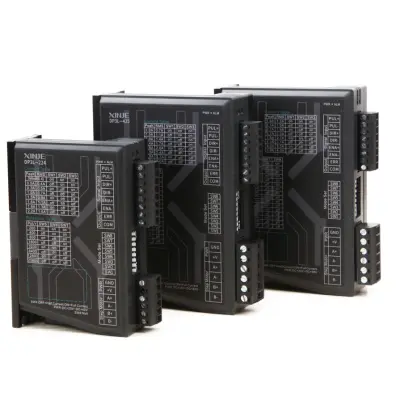

DP3L open-loop Stepping Driver
- Mã sản phẩm:

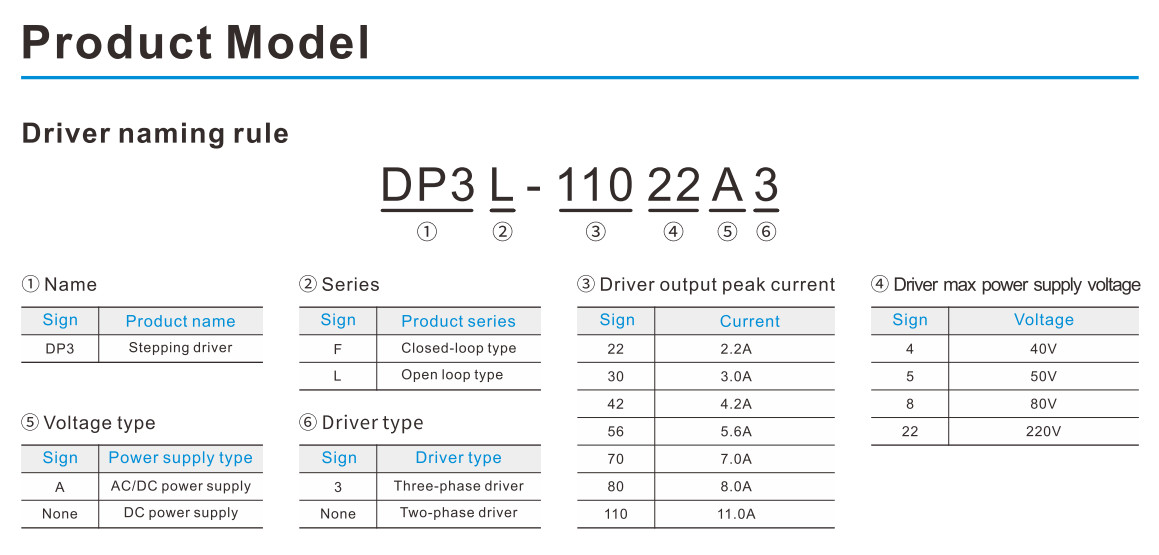

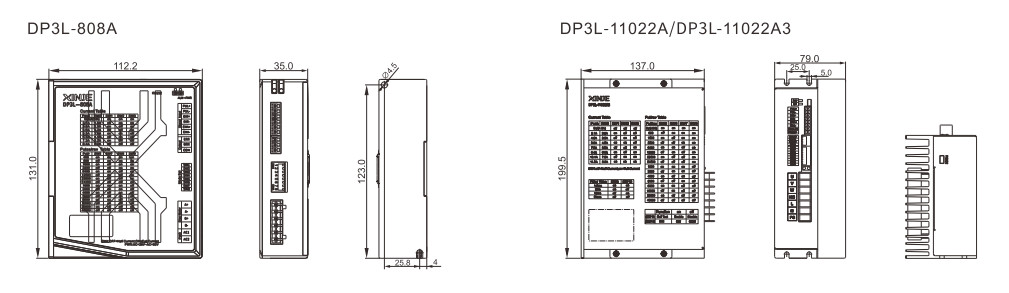

- DP3L-11022A3
- Thương hiệu:
- XINJE
- With the new control algorithm, the drive performance is significantly improved, and the medium and high-speed torque is 10% – 50% higher than the original product.
Giá: Liên hệ
Thông tin sản phẩm

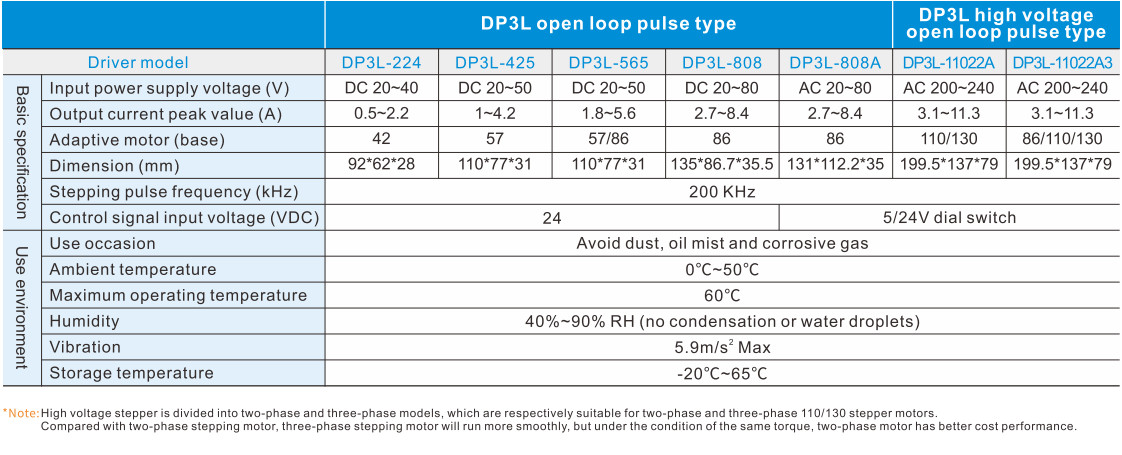

Product features (Đặc tính sản phẩm)
- Appearance optimization, saving installation space.
- The new control algorithm significantly improves the performance of the driver, and the medium and high-speed torque is 10% – 50% higher than the original product.
- The motor runs more smoothly and the vibration degree is reduced, which can reduce the motor temperature rise by about 10%.
- Built in micro separation technology can make the operation more stable and reduce vibration.
- Automatic half current function, effectively reduce the heating of motor and drive.
- It has overcurrent, overvoltage, short circuit and other protection functions.
- External alarm output, maximum output current 50mA, Withstand Voltage 24VDC.
Tài liệu kỹ thuật:
- Catalogue (PDF)
- Manual (HDSD) Tiếng Anh (PDF)
